High Temperature Superconductor (HTS) Magnets

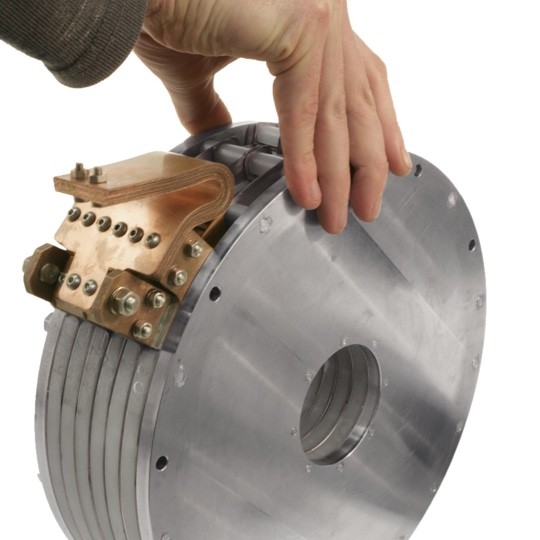

CryoForge™ HTS Coils
Description
Custom HTS coil design and manufacture — from design-stage consultation to winding from client-supplied drawings. Hundreds of coils delivered over a decade-plus for propulsion motors, electricity generation, and prototype development.
Technical Specifications
- Conductors: 1G BSCCO and 2G REBCO/YBCO; co-winding with insulation or metallic reinforcement tapes for enhanced mechanical properties
- Geometries: single- and double-pancake, circular and racetrack; reverse (sagittal) bend capability
- Test: voltage taps fitted; coil measurement from 20 K to 77 K before shipment
- Integration options: current input terminals, cooling plates, inter-coil connections — up to complete coil-pack subassemblies- list item
