High Temperature Superconductor (HTS) Tape Manufacturing Equipment

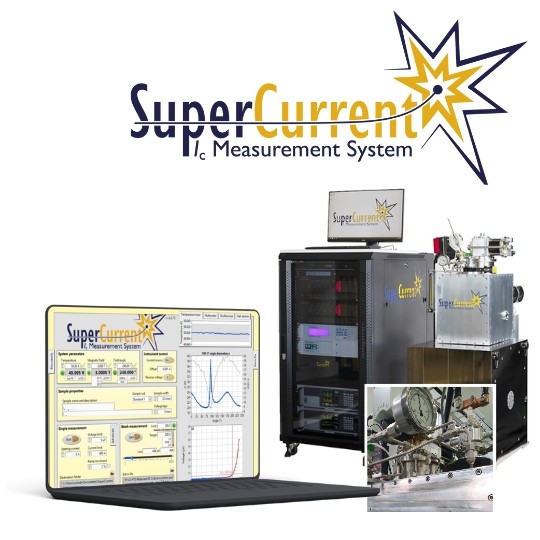

SuperCurrent™ Ic Measurement System
Description
Cryogen-free automated critical-current (Ic) measurement system for QA and characterisation of HTS wire and tape in production and development. Integrates a high-field split-pair magnet with a full transport-measurement setup for Ic(T, B, θ), n-value, and R(T) on 1G, 2G (ReBCO), and MgB₂ conductors — the platform behind the Robinson Research Institute HTS wire database.
Technical Specifications
- Magnet: cryogen-free split-pair, 5 T / 8 T / 12 T options with low fringe field (20 T in R&D)
- Magnet cooldown: <50 h (5/8 T), <60 h (12 T); active quench protection with integrated temperature sensors, voltage taps, and energy-dump system
- Sample space: Ø 20 mm; sample rotation 0–360° for field-angle (θ) dependence
- Sample environment: flowing helium-gas circuit, cooling to 15 K with temperature control; rapid sample exchange
- Transport current: to 1,600+ A with sample voltage preamplifier
- Measurement modes: Ic(T, B, θ), n-value, R(T); 1G, 2G, MgB₂
- Automation: LabVIEW-based control and analysis software for unattended high-resolution data collection; integrated field measurement
- Turn-key delivery: bipolar magnet power supply, sample probe, 1-year warranty; options include calibrated field measurement, I–V analysis software, chiller.
