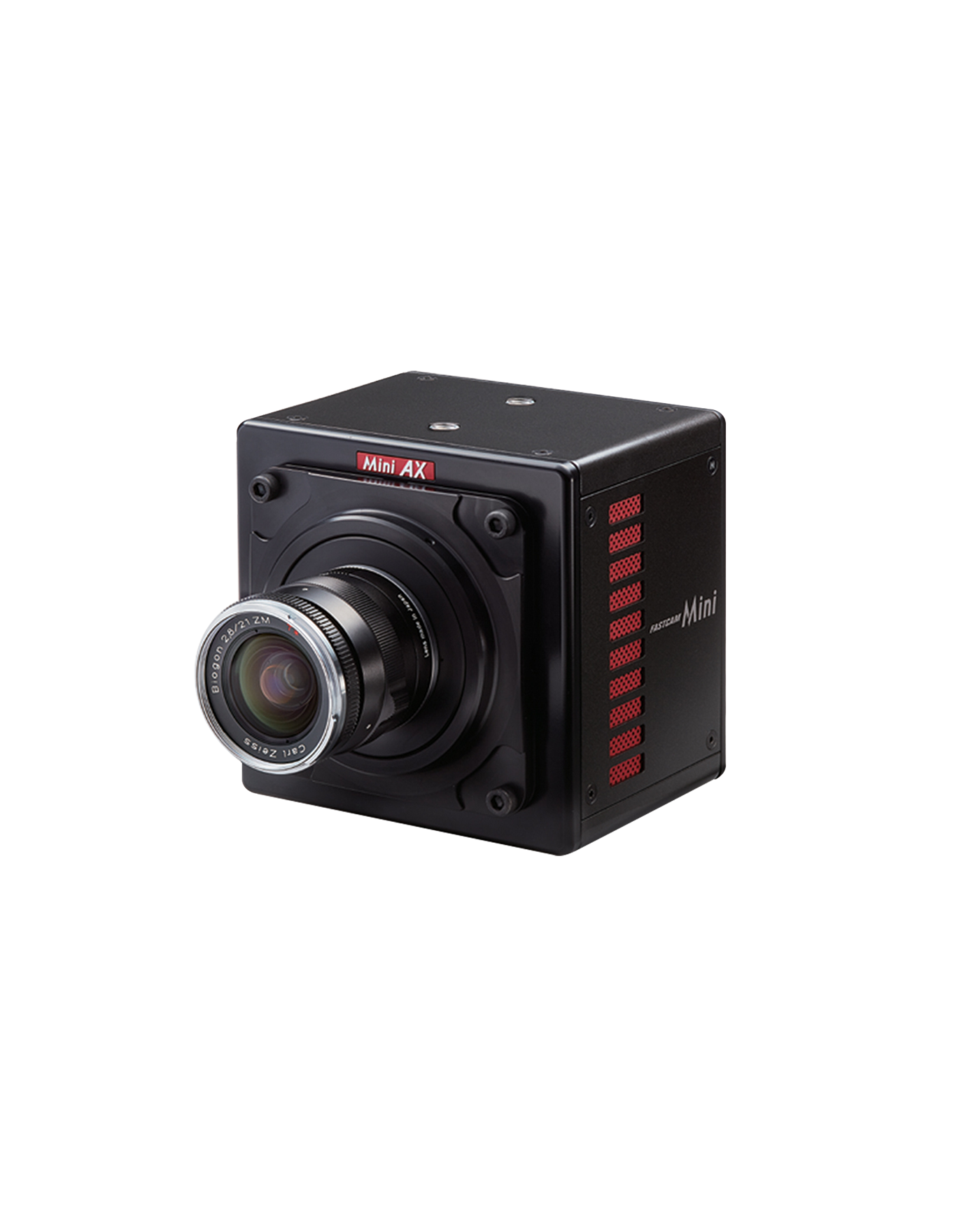

FASTCAM MINI AX
Description
The FASTCAM Mini AX is Photron’s highest-performance model within the FASTCAM Mini family. It combines exceptional light sensitivity, strong image quality, and flexible region-of-interest capabilities in a compact system designed for demanding scientific and industrial applications.
Three performance levels—Mini AX50, AX100, and AX200—provide 1-megapixel image resolution at full-frame rates from 2,000 to 6,400 frames per second.
With maximum reduced-resolution frame rates reaching up to 900,000 fps, the Mini AX delivers a wide operating range for both general high-speed imaging and ultra-fast transient events.
Technical Specifications
Mini AX at a Glance:
- 1,024 × 1,024-pixel CMOS sensor
- Up to 6,400 fps at full resolution
- Up to 900,000 fps maximum frame rate
- ISO 50,000 monochrome sensitivity
- ISO 25,000 color sensitivity
- 1 µs standard minimum exposure
- Compact 1.5 kg camera body
