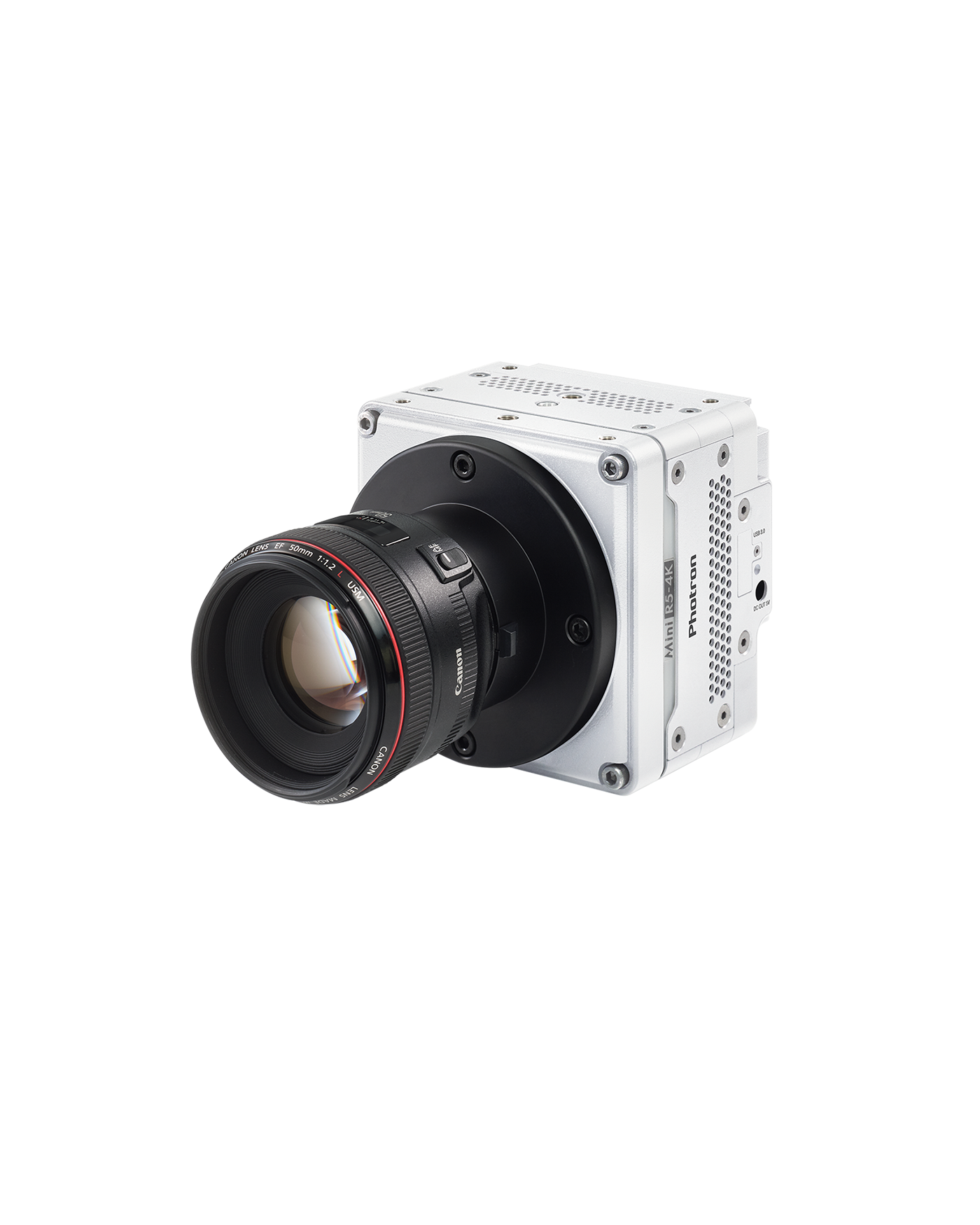

FASTCAM Mini R-Series
Description
The FASTCAM Mini R3-4K and Mini R5-4K use a proprietary 9.4-megapixel CMOS sensor to capture large spatial areas while preserving the fine image detail needed for demanding research, testing, and analysis.
The Mini R3-4K records 4,096 × 2,304 images at 750 frames per second, while the Mini R5-4K reaches 1,250 frames per second at the same full 4K resolution. At Full HD, performance increases to 3,000 fps and 5,280 fps respectively.
Both models combine 12-bit recording, a 2-microsecond global electronic shutter, class-leading light sensitivity, remote lens control options, 10-Gigabit Ethernet, and a sealed high-G-rated body.
Technical Specifications
Mini R-Series at a Glance:
4,096 × 2,304 maximum resolution
Up to 1,250 fps at full 4K resolution
Up to 5,280 fps at Full HD
Up to 200,000 fps at reduced resolution
ISO 4,000 monochrome sensitivity
ISO 800 color sensitivity
Compact 120 × 120 × 94.4 mm body
