High-Speed-Cameras

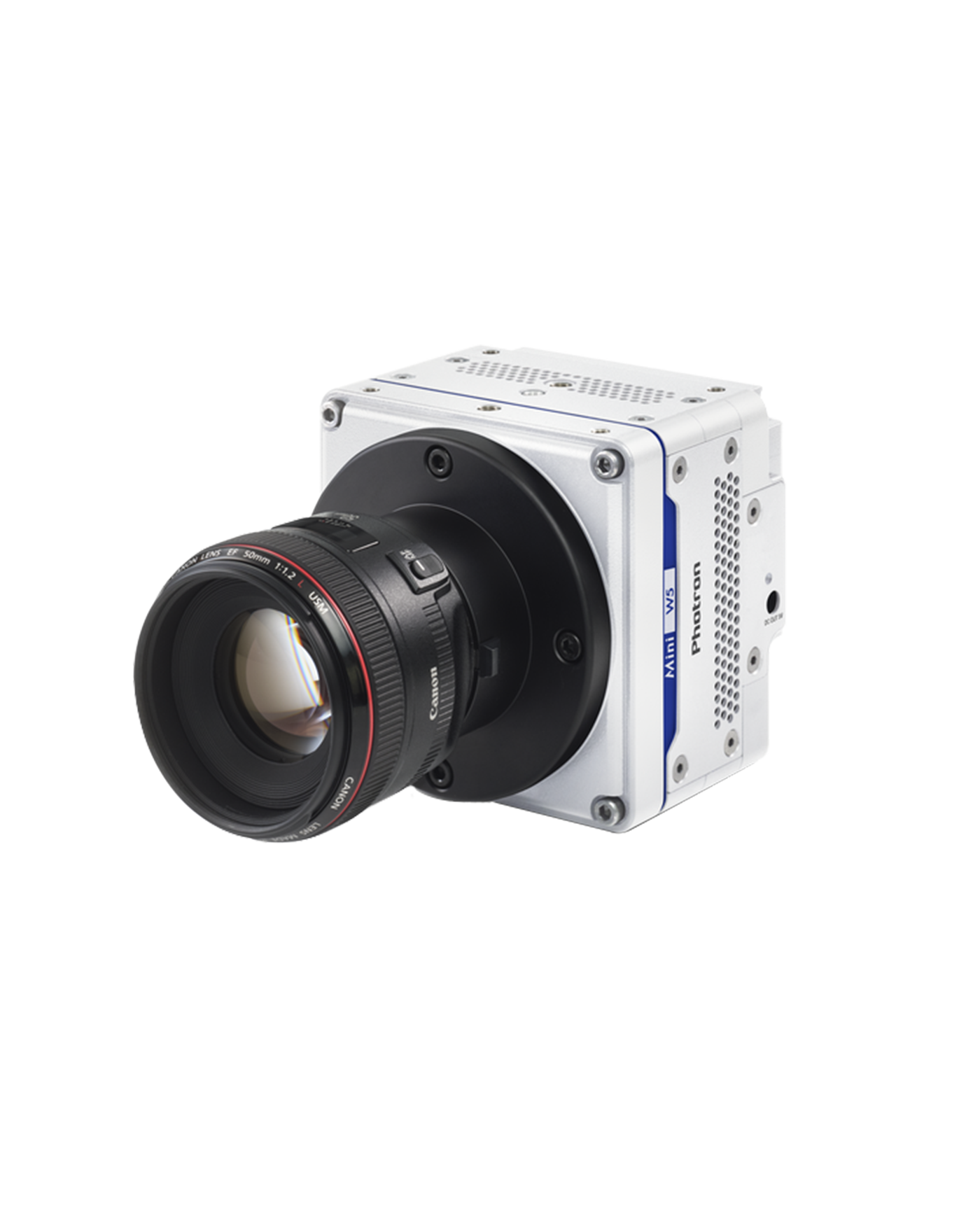

FASTCAM Mini W Series
Description
The FASTCAM Mini W5 and Mini W2 combine a 2.4-megapixel CMOS image sensor with high frame rates, class-leading light sensitivity, and 12-bit image recording for demanding scientific and industrial applications.
At full 2,048 × 1,152 resolution, the Mini W5 records at 5,000 frames per second while the Mini W2 records at 2,000 frames per second. Full HD performance reaches 5,280 fps on the Mini W5 and 2,750 fps on the Mini W2.
A global electronic shutter as short as 2 microseconds freezes rapid motion, while flexible Nikon G, C-mount, Canon EF, Canon RF, and M42 lens options support a wide range of optical setups.
Technical Specifications
Mini W at a Glance:
- 2,048 × 1,152 maximum resolution
- Up to 5,000 fps at full resolution
- Up to 200,000 fps at reduced resolution
- ISO 10,000 monochrome sensitivity
- ISO 2,000 color sensitivity
- 12-bit monochrome recording
- Compact 120 × 120 × 93 mm body
