High-Speed-Cameras

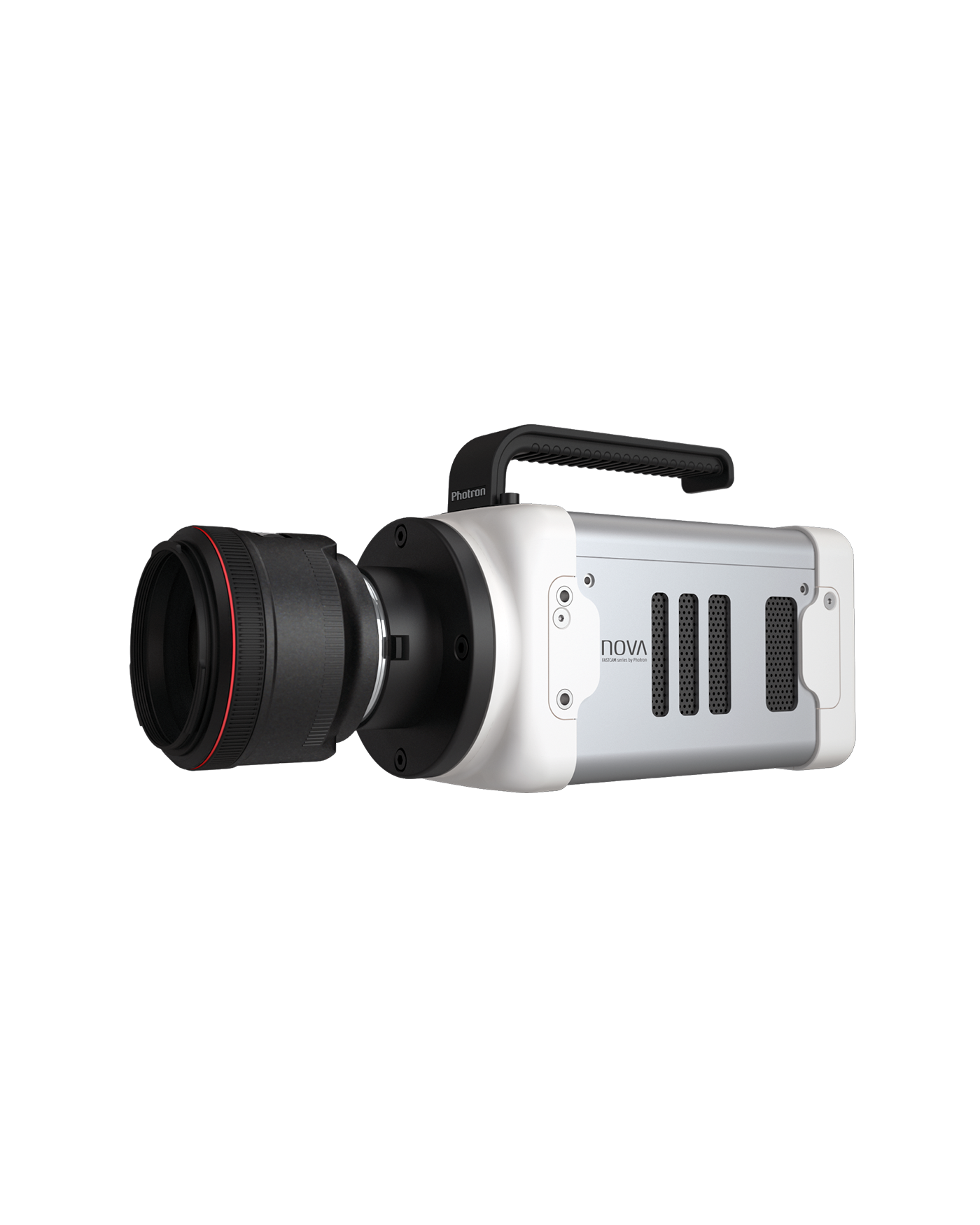

FASTCAM NOVA R-Series
Description
The FASTCAM NOVA R3-4K and R5-4K combine a proprietary 9.4-megapixel CMOS image sensor with Photron’s high-speed imaging technology to capture rapid events in exceptional spatial detail.
The R3-4K records 4096 × 2304 images at 750 frames per second, while the R5-4K reaches 1,250 frames per second at the same full 4K resolution. At UHD resolution, performance increases to 800 fps and 1,440 fps respectively.
Both cameras provide 12-bit monochrome recording, a global electronic shutter as short as 2 microseconds, high light sensitivity, flexible lens support, high-speed networking, and a sealed rugged body.
Technical Specifications
NOVA R-Series at a Glance:
- 4096 × 2304 maximum resolution
- Up to 1,250 fps at full 4K resolution
- Up to 1,440 fps at UHD resolution
- Up to 200,000 fps at reduced resolution
- ISO 3,200 monochrome sensitivity
- 12-bit monochrome recording
- Optional 4 TB FASTDrive SSD
