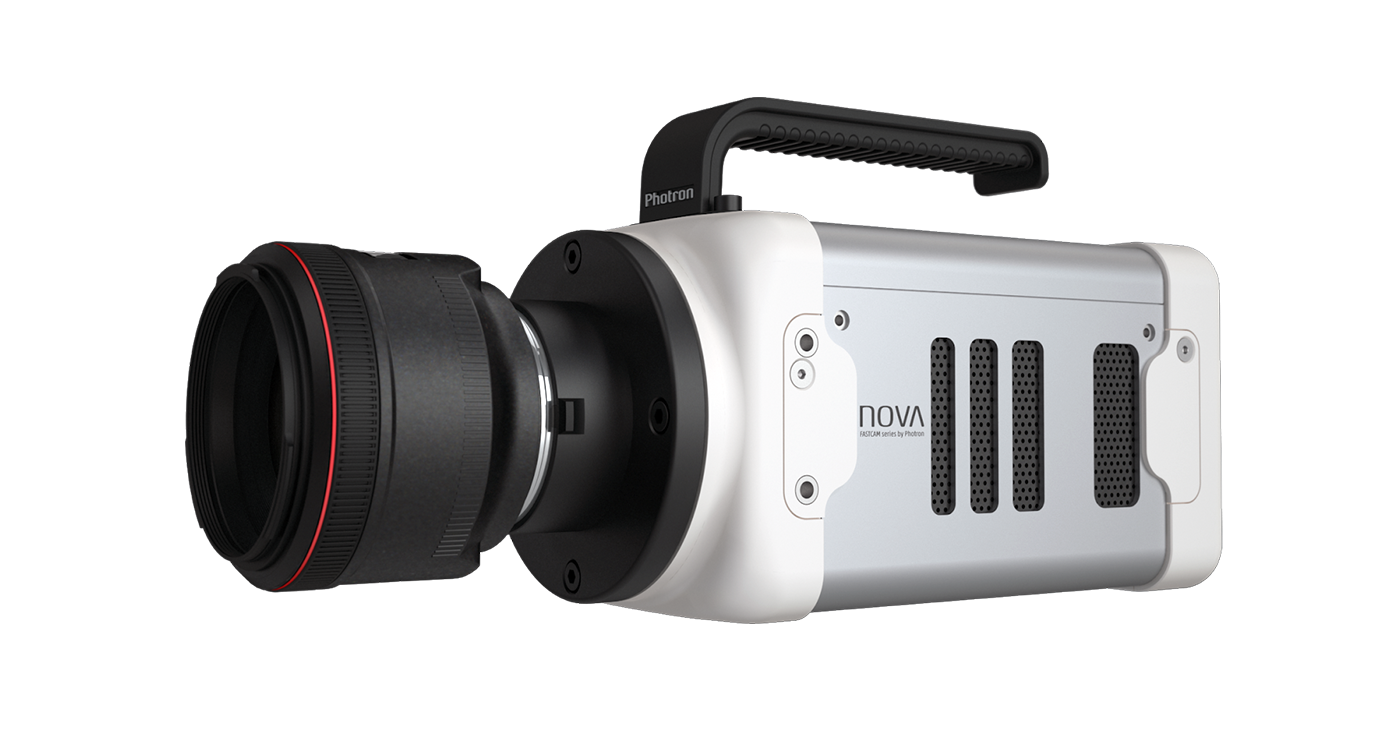

FASTCAM NOVA S20
Description
The FASTCAM NOVA S20 combines Photron’s proprietary CMOS sensor technology with decades of high-speed imaging expertise to deliver exceptional performance across research, engineering, and industrial testing applications.
Users can select between 10-bit and 12-bit operation to optimize either maximum frame rate or image depth. The S20 records up to 20,000 frames per second at megapixel resolution in 10-bit mode and up to 16,500 fps at full 1024 × 1024 resolution in 12-bit mode.
Technical Specifications
NOVA S20 at a Glance:
- 1024 × 992 at 20,000 fps in 10-bit mode
- 1024 × 1024 at 16,500 fps in 12-bit mode
- Up to 1,100,000 fps
- ISO 64,000 monochrome sensitivity
- ISO 16,000 color sensitivity
- 0.2 µs minimum exposure
- Up to 128 GB internal memory
