Polarization Imaging Systems
Description
Polarization imaging reveals optical properties that conventional intensity imaging does not directly show. It can visualize and quantify changes caused by internal stress, molecular orientation, material thickness, refractive behavior, and dynamic deformation.

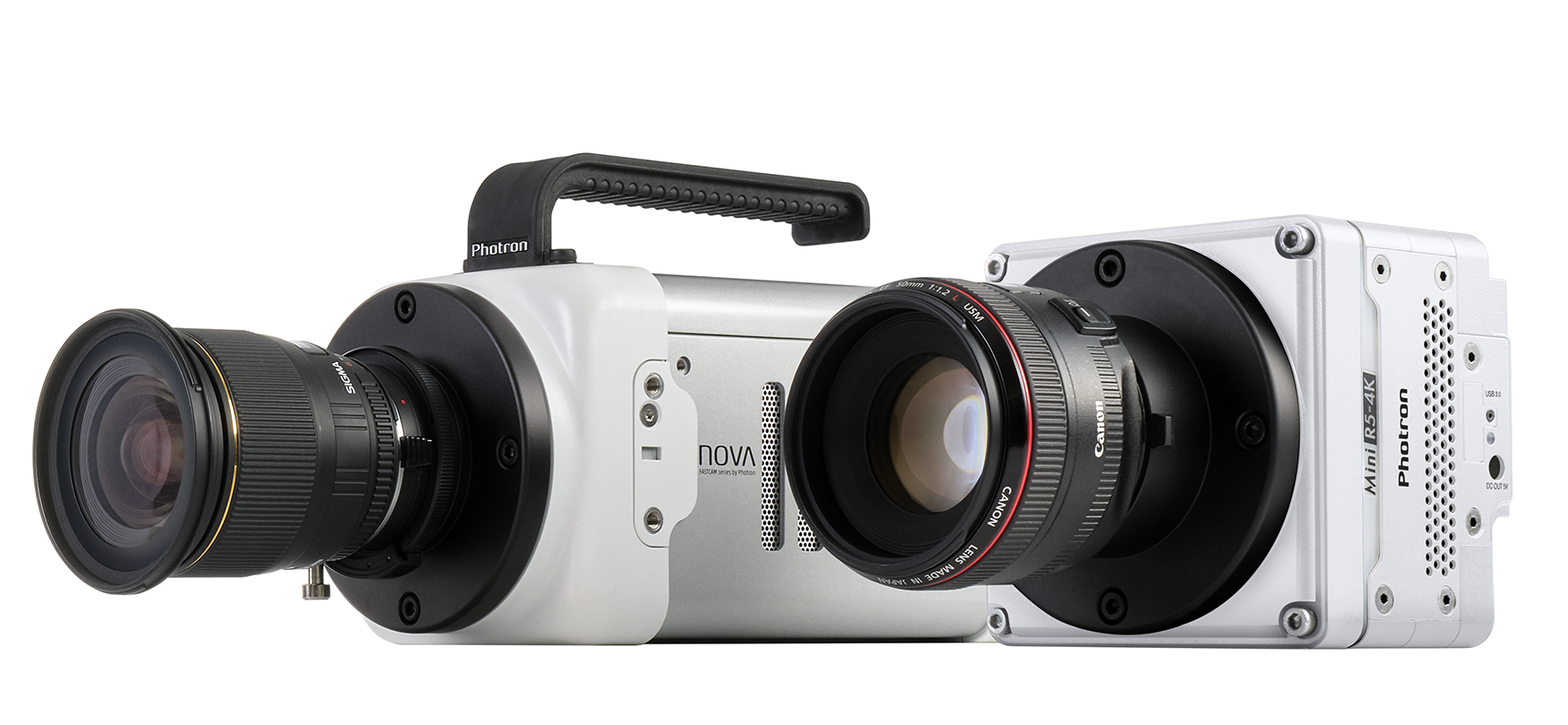

Photron’s polarization portfolio includes high-resolution static measurement systems, the CRYSTA family of high-speed polarization cameras, an integrated polarized rheology platform, and automated mapping systems for production and laboratory inspection.
Technical Specifications
CRYSTA NOVA P16
Built on the FASTCAM NOVA platform, the P16 combines high-speed conventional imaging with high-speed polarization measurement for demanding transient events.
- Full 1MP resolution up to 16,000 fps
- Reduced resolution: >1 million fps
- High light sensitivity: ISO 64,000
CRYSTA NOVA P12
The P12 provides the performance characteristics of its FASTCAM parent platform while adding pixel-level polarization measurement for dynamic birefringence and stress visualization.
- Full resolution up to 12,000 fps
- 64 GB or 128 GB onboard memory
CRYSTA Mini AX200
A compact, lightweight high-speed polarization camera designed for a wide range of research and development applications.
- 1024 × 1024 @ 6,400 fps
- Reduced resolution up to 900,000 fps
